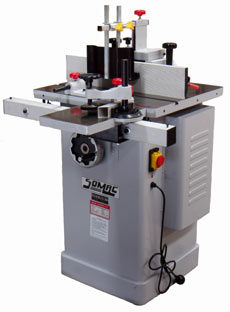

Somac Spindle Moulder
WS-3/4B   1.5Hp

  • The Somac WS-3/4B Spindle Moulder has been specially configured by us to accept 30mm bore cutters as well as collets to take 1/4" and 1/2" Shank standard Router Cutters.

  • Optional 30mm I.D. x 77mm O.D. cutter block with 13 profile cutters is available.

  • This quality machine has the big advantage of having a solid cast iron sliding table to give you much more versatility.

  • Extra large cast iron table.

  • Sliding Table with hold-down clamp included.

  • Heavy duty 30mm Spindle.

  • Two speed settings.

  • 1.5 Hp motor. Single Phase.

  • 100mm Dia. Dust Extractor Outlet.

  • Enclosed cabinet stand.

  • Optional mobile base.

  • Availability: On Order

  •  Enquiry Here.

Specifications.

Motor Input: 1.5Hp Single Phase.
Table Length: 610mm
Width: 534mm
Spindle Speed: 5800 or 8300 rpm
Diameter 30mm
Mortising Capacity Lift Distance: 75mm
Weight 140kg
