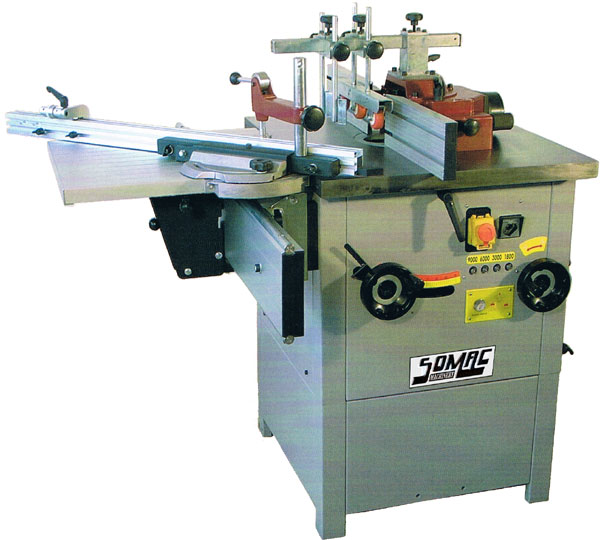

SOMAC Spindle Moulder w/Tilting Shaft

  • A professional heavy duty spindle moulder packed with the features expected of machines twice the price.

  • Four speed machine with LED speed indication.

  • Reversible via electronic control.

  • Full tilt capacity from -5deg to 45deg

  • 4 Hp Single Phase motor installed.

  • Complete with a sliding carriage running on sealed bearing assemblies.

  • Lockdown rollers for safety and accurate cutting.

  • Proven and tested throughout New Zealand.

  • Optional Mobile Wheel Kit.

  • Availability:  On Order

  • Enquiry Here

Optional Mobile Wheel Kit



Click For Larger Picture

































Specifications.

Motor Power 2200W
Table Size 640mm x 710mm
Table Height 910mm
Spindle Diameter 30mm
Spindle Travel 100mm
Spindle Tilt -5deg - +30deg
Tool Open 200mm
Max Tool Size 200mm
Spindle Speed (RPM) 1800, 3000, 6000, 9000
Sliding Table Size 480mm x 500mm
Sliding Rail Length 1000mm
Weight 198 Kg
